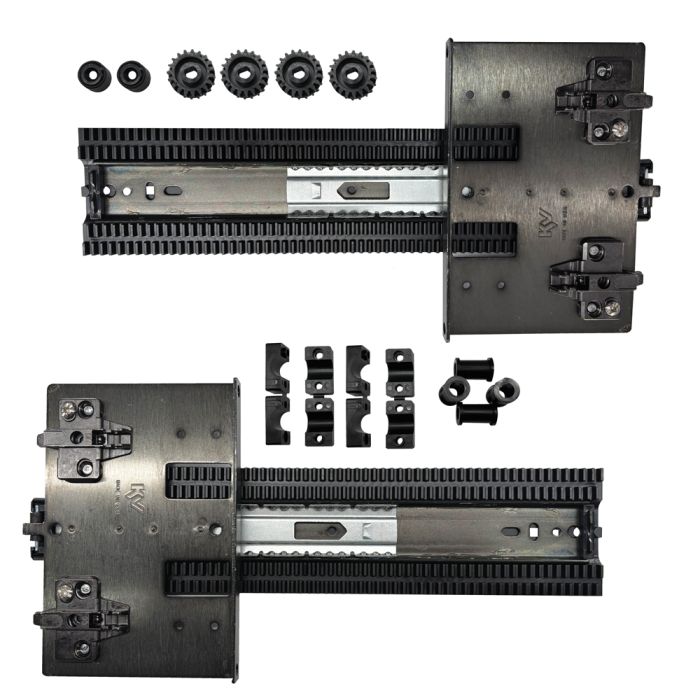

KV 8092 Pocket Door System
SKU
KV8092 P-conf
Superior quality, high end rack and pinion system!
The KV8092 4x4 pocket door slide is ideal for use in large entertainment and home theater cabinets. It is specially designed to hold over-sized doors up to 75 pounds and 72 inches in height. Dual rack and pinion system virtually eliminates door sag.
Three-way adjustable isometric door hinges and pinion shaft sold separately, listed below
The KV8092 4x4 pocket door slide is ideal for use in large entertainment and home theater cabinets. It is specially designed to hold over-sized doors up to 75 pounds and 72 inches in height. Dual rack and pinion system virtually eliminates door sag.
Three-way adjustable isometric door hinges and pinion shaft sold separately, listed below
Made in USA
Screws Included
- Easy to install
- 75# maximum door
- Maximum door dimensions of 26" x 72"
- Not recommended for square doors or where width is greater than height
- Precision steel ball bearing slides
- Ebony black, zinc chromate electroplated with lacquer top coat
- Use on vertical doors only
- hinge packs sold separately, different overlay options available
- Pinion shafts sold separately, 3 different lengths available
- See application chart for additional measurement information
- For each door order: 1 set of 2 slides
-1 pinion shaft
-2 pair of 2 hinges
| Manufacturer | KV |
|---|---|
| Length | 0 |
| Product Badges | Made in USA, Screws Included |
| Monthly Special | No |
