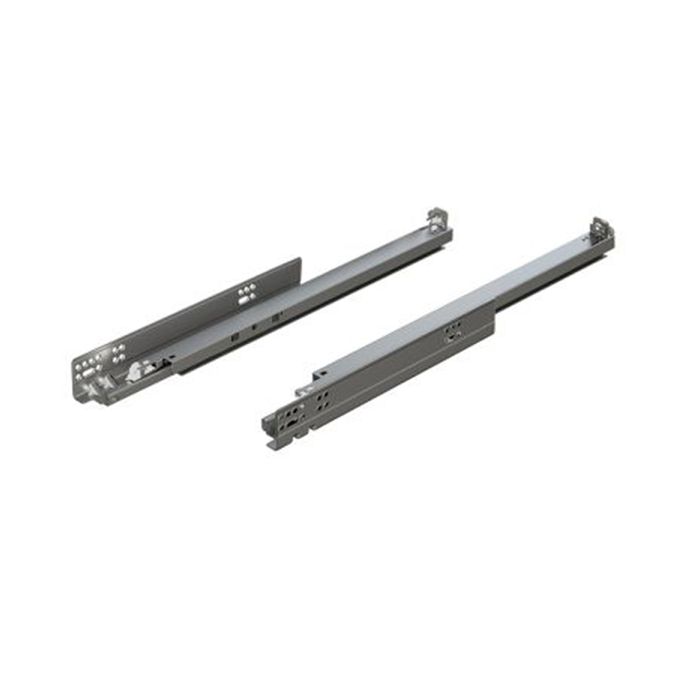

Blum Tandem plus BLUMOTION 563. Series - Side Mount

SKU

B563-conf

TANDEM plus BLUMOTION is Blum’s concealed drawer runner system engineered for smooth and reliable performance. The integrated BLUMOTION soft-close technology ensures that drawers close gently each time. Designed for wood drawers with tool-free adjustments that ensure a precise, custom fit, TANDEM plus BLUMOTION provides a tailored solution for all cabinetry. Whether for kitchens, bathrooms or other parts of the home, this system elevates the user experience, ensuring long-lasting quality in every drawer.

Made in USA

Screws Included

Sold as Pair

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Mounting: Undermount
Height: 1-7/8"
Load Rating: 100 lb static, 90 lb dynamic
Travel: Full Extension

Frameless or blocked-out face frame cabinets
1/2" to 5/8" drawer thickness
Zinc-coated steel
Full extension concealed runners with BLUMOTION soft-close
Concealed roller carriage with permanently lubricated synthetic rollers
Available in standard duty
Bottom mount holes
Four-dimensional adjustment
Elongated holes for depth adjustment
Tool-free tilt adjustment
Tool-free rear side-to-side adjustment
Locking devices allow easy insertion and removal of drawers
Made in the USA with domestic and European components
All Blum runners meet or exceed ANSI/BHMA A156.9 Grade 1 requirements

Required Accessories (sold separately)
- Locking devices
Optional Accessories
- Concealed Runner Template (BT65.1600)
- Universal Individual Template (B065.1051.02)
- Lateral Stabilizer Set (BZST.686TU)

More Information

More Information
Manufacturer	Blum
Product Badges	Made in USA, Screws Included, Sold as Pair
Type	Undermount Drawer Slide
Monthly Special	No

Product Attachments
