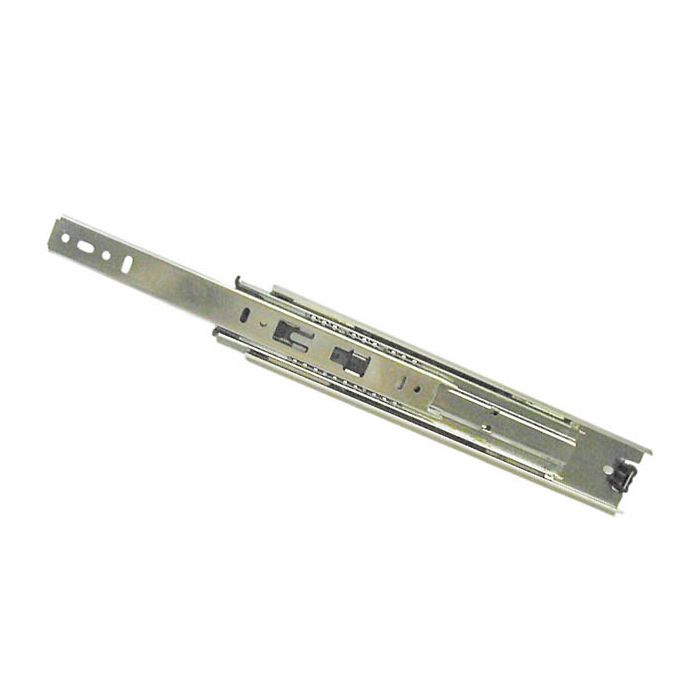

KV 8400 Series Full Extension Drawer Slides Anochrome Finish
SKU
KV8400-conf
Our Best Selling 100 lb. class full extension drawer slide features an ergonomically designed push-in lever release for easy drawer removal. The reversed flex tabs allow improved slide performance with side clearance tolerance adjustments. 8400 is an unhanded design with traditional 32mm hole pattern that supports industry standards. Recommended maximum drawer width of 24".
Made in USA
Screws Included
- 100# Load Rating
- Side mounted
- Slide height - 1-13/16"
- Side clearance - 1/2" + 1/32" - 0
- Steel ball bearing. Exceptionally smooth and quiet. A very high quality slide
- Full 32mm hole pattern
- Non-handed
- Easy disconnect
- Optional Rear Mounting Bracket product number KV8403 BBL ZC or KV8401
- Optional Face Frame bracket KV8404 BBL ZC
| Manufacturer | KV |
|---|---|
| Product Badges | Made in USA, Screws Included |
| Monthly Special | Yes |
