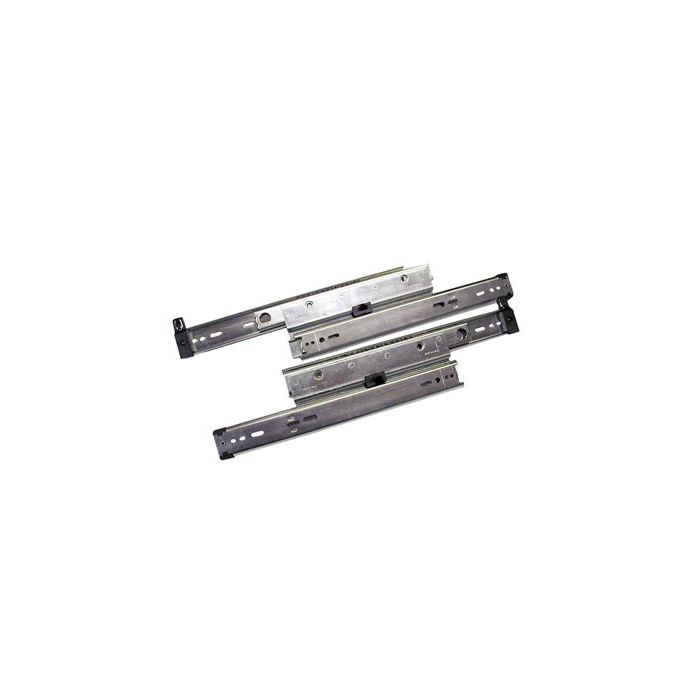

16in Full Ext Slide W/Overtravel

SKU

KV8505 P16

SET

Designed for box drawer or pedestal file drawers up to 30" wide. 12" to 30" Full Extension Slide W/Overtravel

Made in USA

Screws Included

Progressive 1-1/2" Overtravel
Side Mounted -1/2" plus 1/32" minus 0 each side
Material: Electro zinc-plated and lacquered cold rolled steel
Action: Heavy duty progressive full extension on precision steel ball bearing. 3 ball bearings per inch of race
Features: 32mm hole pattern for system mounting
Factory attached drawer release clips with non-handed quick disconnect drawer members
Hold-in feature to prevent bounce back
Positive in/out stops
Stay close feature
