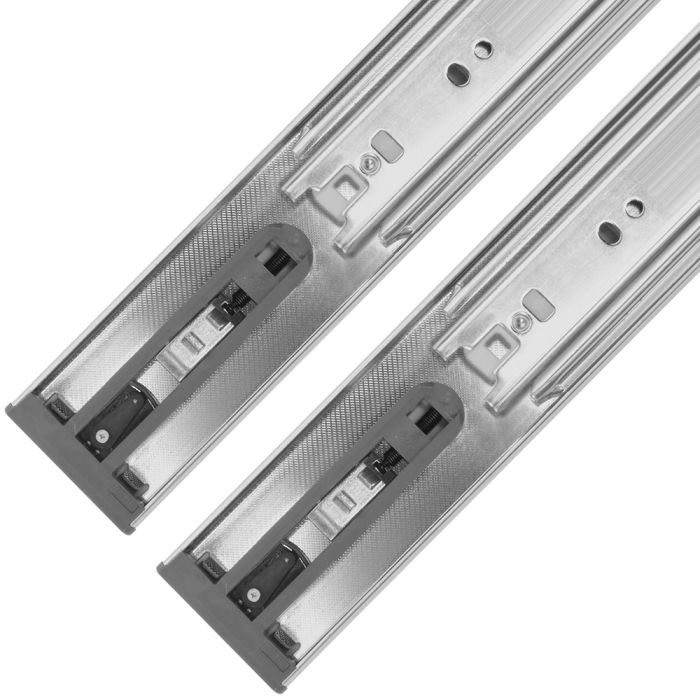

KV GS4260 G-Slide Push To Open 4260
SKU
KVGS4260-conf
- Load Rating: 100 lbs
- Side Clearance: 1/2" + 1/32" - 0 per side
- Mounting: Side
- Side Height: 1-13/16"
- Precision steel ball bearing slide
- Full 32mm hole pattern
- Non-handed
- Drawer member setback min 1/8" from drawer front
- Slide has polymer stop cushions so there is no need for bumper pads
- Hold-in detent
- Lever disconnect
- Zinc finish
- Allow a minimum of 4mm clearance to activate push-to-open mechanism
- Max drawer width 24"
- Meets / exceeds KCMA, BIFMA & BHMA standards
| Manufacturer | G Slide |
|---|---|
| Length | 0 |
| Monthly Special | No |
